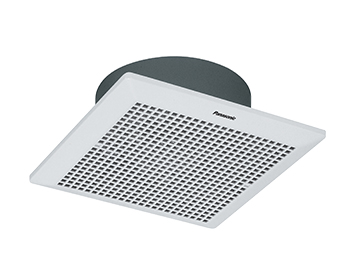

Ceilling Mount Ventilation Fan
FV-20CUT1NAHP (8")
Features
- Unique Q-blades For Low Noise Operation
- Energy-saving, High Performance Motor
- Ball Bearing Motor For Smoother And Maintenance
- Easy To Disassemble For Cleaning And Maintenance
- Easy To Install
- Built-in Safety Thermal Fuse
- Suitable For Offices And Bedrooms

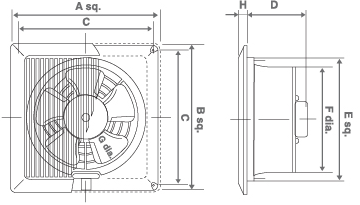

Installation Space (unit:mm)
| Model | FV-25AUF1 | |
|---|---|---|
| Size | cm | 20 |
| inch | 8 | |
| mm | A | 315 |
| B | 305 | |
| C | 286 | |
| D | 128 | |
| E* | 260 | |
| F | 223 | |
| G | 200 | |
| H | 18 | |
Specification
| Model | 50Hz | FV-20CUT1P | ||
|---|---|---|---|---|
| Air Volume | cfm | cmh | 265 | 450 |
| Motor | W | 26 | ||
| Fan Speed | RPM | 1,207 | ||
| Weight | kg | 1.8 | ||
| Low Noise Level | dB | 41 | ||
| Low Electricity Consumption 24 Hours | RM | 0.14 | ||
